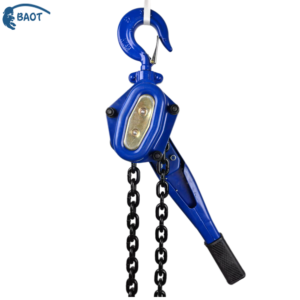

Hot Sale Heavy Duty Ratchet Manual Lever Chain Hoist 1 Ton 3 Ton VE Chain Block
How Does a Manual Lever Chain Hoist Work?
The working principle of a manual lever chain hoist revolves around the interaction of gears, a chain, and a lever. When the user operates the lever, it engages a series of gears inside the hoist.
These gears multiply the force applied to the lever, converting the relatively small manual effort into a much larger force capable of lifting heavy loads. The chain is attached to the load, and as the gears rotate, they pull the chain upward, raising the load.
To lower the load, a brake mechanism (usually a ratchet and pawl) is released, allowing the chain to descend slowly and in a controlled manner. This brake system also ensures that the load remains securely suspended when the lever is not being operated, preventing accidental drops.
Key Components
1. Lever Handle: The part operated by the user to apply force. It is designed for comfort and ease of use, often with a non-slip grip.
2. Gear Train: Consists of multiple gears that amplify the force from the lever. The gear ratio determines the mechanical advantage, with higher ratios allowing heavier loads to be lifted with less effort.
3. Load Chain: A strong, durable chain (typically made of alloy steel) that bears the weight of the load. It is designed to withstand high tension and resist wear and corrosion.
4. Hook: Located at both the top (for anchoring the hoist) and the bottom (for attaching the load). Hooks are usually equipped with safety latches to prevent the load or hoist from slipping off.
5. Brake System: Ensures load security. The ratchet and pawl mechanism allows the load to be held in any position, and it only releases when the lever is operated in the lowering direction.
A manual lever chain hoist, also known as a lever block, is a compact and portable lifting device widely used in various industries for lifting, pulling, and positioning heavy loads.
Lever chain hoist operates on a simple yet efficient mechanical principle, making it an indispensable tool in scenarios where electricity or other power sources are unavailable or impractical. Unlike electric hoists, manual lever chain hoists rely on human effort to generate lifting force, offering precise control over the load movement.
